sup_figure7

pkgs <- c("fs", "futile.logger", "configr", "stringr", "ggpubr", "ggthemes", "SingleCellExperiment",
          "RColorBrewer", "vroom", "jhtools", "glue", "jhuanglabHyperion", "openxlsx", "ggsci", "ggraph",
          "patchwork", "cowplot", "tidyverse", "dplyr", "rstatix", "magrittr", "igraph","tidygraph")
suppressMessages(conflicted::conflict_scout())
for (pkg in pkgs){
  suppressPackageStartupMessages(library(pkg, character.only = T))
}
res_dir <- "./results/sup_figure7" %>% checkdir
dat_dir <- "./data" %>% checkdir
config_dir <- "./config" %>% checkdir

#colors config
config_fn <- glue::glue("{config_dir}/configs.yaml")
stype3_cols <- jhtools::show_me_the_colors(config_fn, "stype3")
ctype10_cols <- jhtools::show_me_the_colors(config_fn, "cell_type_new")
meta_cols <- jhtools::show_me_the_colors(config_fn, "meta_color")

#read in coldata
coldat <- readr::read_csv(glue::glue("{dat_dir}/sce_coldata.csv"))
meta_clu <- readxl::read_excel(glue::glue("{dat_dir}/meta_clu.xlsx")) %>% dplyr::select(-9)
ci <- readr::read_rds(glue::glue("{dat_dir}/ci_list.rds"))
sample_chemo_type_list <- readr::read_rds(glue::glue("{dat_dir}/sample_chemo_type_list.rds"))
metadata <- readr::read_rds(glue::glue("{dat_dir}/metadata.rds"))

# function
interaction_plot <- function(x, conditionCol, group, colors, threshold = 0.1, selfDe = T){
  from <- "from_meta"
  to <- "to_meta"
  fn <- "metacluster_"
  cols <- colors

  if (selfDe == TRUE) {
    fil <- "filteredself"
    dt_cl <- x %>% dplyr::filter(.data[[from]] != .data[[to]]) %>%
      group_by(.data[[from]], .data[[to]], .data[[conditionCol]]) %>%
      summarise(N = n()) %>% left_join(x %>% dplyr::filter(.data[[from]] != .data[[to]]) %>%
                  group_by(.data[[conditionCol]]) %>%
                  summarise(NT = n()), by = conditionCol) %>%
      dplyr::mutate(pct = N/NT * 100)
  } else {
    fil <- ""
    dt_cl <- x %>% group_by(.data[[from]], .data[[to]], .data[[conditionCol]]) %>%
      summarise(N = n()) %>% left_join(x %>% group_by(.data[[conditionCol]]) %>%
                                         summarise(NT = n()), by = conditionCol) %>%
      dplyr::mutate(pct = N/NT * 100)
  }

  dt_cl <- dt_cl %>% group_by(.data[[conditionCol]])
  glist <- dt_cl %>% dplyr::filter(pct > 0.1) %>%
    group_map(~as_tbl_graph(dplyr::select(.,c(.data[[from]], .data[[to]], pct))))
  gkeys <- dt_cl %>% group_keys()
  plist <- list()
  for(i in 1:length(glist)){
    g <- glist[[i]]
    if(length(g) == 0) next
    names <- paste0(fn, group, "_", gkeys[i,][[conditionCol]], "_", fil)
    plist[[names]] <- ggraph(g, "stress") +
      geom_edge_link(aes(edge_width = pct, alpha = pct)) +
      geom_node_point(aes(color = name), size = 3) +
      #geom_node_text(aes(label = name), size = 4, repel = T, colour = "red") +
      scale_edge_width("interaction percentage", range = c(0.2, 1.5),
                       breaks = c(0.1,1,3,5,10,15,20,25),limits=c(0.1, 25), #oob = scales::squish,
                       guide = guide_legend(title.theme = element_text(size = 8),
                                            ncol = 1, byrow = FALSE, keywidth = 0.8,
                                            keyheight = 0.1)) +
      scale_edge_alpha("interaction percentage", range = c(0.1, 1.5),
                       breaks = c(0.1,1,3,5,10,15,20,25),
                       limits=c(0.1, 25), oob = scales::squish) +
      scale_color_manual(limits = as.factor(V(g)$name), values = colors) +
      theme_graph(base_family = "Helvetica", base_size =8) +
      guides(col = guide_legend(title = "interaction", ncol = 1,
                                byrow = FALSE, keywidth = 0.1, keyheight = 0.1,
                                override.aes = list(size=1),
                                title.theme = element_text(size = 8)))
  }
  return(plist)
}

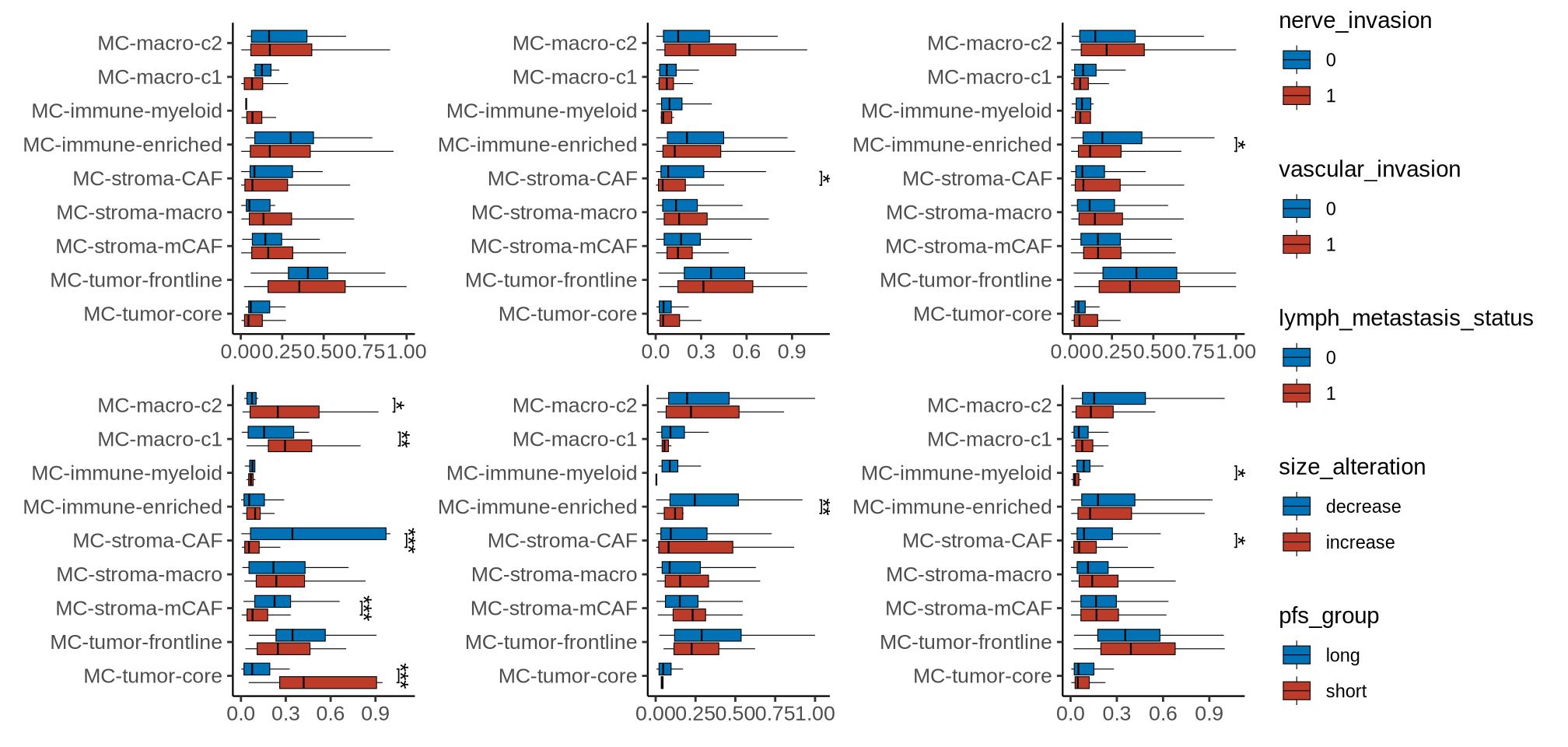

sup_figure7a

keycols_list <- c(list("nerve_invasion"), list("vascular_invasion"),
                  list("lymph_metastasis_status"), list("size_alteration"),
                  list("size_alteration"), list("pfs_group"))
compare_groups <-c("nerve_invasion", "vascular_invasion", "lymph_metastasis",
                   "chemo_outcome_before", "chemo_outcome_after", "pfs_analysis")
names(keycols_list) <- compare_groups

meta_cluster_names <- rev(c("MC-macro-c2", "MC-macro-c1", "MC-immune-myeloid",
                            "MC-immune-enriched", "MC-stroma-CAF", "MC-stroma-macro",
                            "MC-stroma-mCAF", "MC-tumor-frontline", "MC-tumor-core"))

total_group <- coldat %>%
  dplyr::select(c(sample_id, sample_tiff_id, patient_id, cell_id, stype2,
                  cluster_names, meta_cluster)) %>%
  na.omit() %>% dplyr::filter(meta_cluster %in% meta_cluster_names)

factor_list <- list("nerve_invasion" = c("1", "0"),
                    "vascular_invasion" = c("1", "0"),
                    "lymph_metastasis" = c("1", "0"),
                    "chemo_outcome_before" = c("increase", "decrease"),
                    "chemo_outcome_after" = c("increase", "decrease"),
                    "pfs_analysis" = c("short","long"))

plist <- list()
for(compare_group in compare_groups){
  #cli::cli_h1(compare_group)
  groups <- metadata[[compare_group]]
  gp_key <- keycols_list[[compare_group]]
  cli::cli_alert_info(gp_key)
  groups <- groups %>% drop_na(all_of(gp_key))

  dt_groups <- total_group %>% dplyr::filter(patient_id %in% groups$patient_id)
  if (compare_group == "chemo_outcome_before") {
    dt_groups <- dt_groups %>% dplyr::filter(stype2 %in% c("before_chemo","puncture_pdac"))
  } else if (compare_group %notin% c("paired_after_neoadj", "mpc_primary_metastasis", "tumor_para")) {
    dt_groups <- dt_groups %>% dplyr::filter(stype2 %in% c("after_chemo","tumor"))
  }

  dat_plot <- dt_groups %>%
    group_by(meta_cluster, sample_tiff_id) %>%
    summarise(nc = n()) %>%
    group_by(sample_tiff_id) %>%
    dplyr::mutate(nt = sum(nc)) %>%
    dplyr::mutate(pro = nc/nt) %>% ungroup()
  dat_plot$meta_cluster <- factor(dat_plot$meta_cluster, levels = meta_cluster_names)

  metainfo <- coldat[, c("sample_tiff_id", "patient_id")] %>% distinct()
  dat_plot <- inner_join(dat_plot, metainfo, by = "sample_tiff_id") %>%
    inner_join(groups, by = "patient_id") %>% distinct()

  dat_plot[[gp_key]] <- factor(dat_plot[[gp_key]], levels = factor_list[[compare_group]])
  dat_plot$meta_cluster <- fct_relevel(dat_plot$meta_cluster, meta_cluster_names)

  p <- ggboxplot(dat_plot, x = "meta_cluster", y = "pro", fill = gp_key, outlier.shape = NA,
                 palette = pal_nejm("default")(3), xlab = NULL,size = 0.2) + theme_classic() +
    theme(strip.placement  = "outside",
          panel.spacing    = unit(3, "points"),
          strip.background = element_blank(),
          strip.text       = element_text(face = "bold", size = 5),
          axis.text.x = element_text(size = 10), axis.text.y = element_text(size = 10),
          axis.line.x = element_line(size = 0.4),
          axis.line.y = element_line(size = 0.4),
          legend.position="right") +
    labs(x= NULL, y = NULL)
  exp1 <- expr(pro ~ !!ensym(gp_key))
  stat_test <- dat_plot %>%
    group_by(meta_cluster) %>% rstatix::wilcox_test(eval(exp1), p.adjust.method = "none")
  stat_test <- stat_test %>% mutate(p.adj.signif = case_when(p >= 0.05 ~ "ns",
                                                            p >= 0.01 & p < 0.05 ~ "*",
                                                            p >= 0.001 & p < 0.01 ~ "**",
                                                            p >= 0.0001 & p < 0.001 ~ "***",
                                                            p < 0.0001 ~ "****",
                                                            TRUE ~ "ns"))
  stat_test <- stat_test %>%
    add_xy_position(x = "meta_cluster", dodge = 0.8)
  p1 <- p +
    stat_pvalue_manual(
      stat_test, tip.length = 0.01, hide.ns = T, label = "p.adj.signif",
      coord.flip = TRUE
    ) + coord_flip() +
    guides(fill = guide_legend(reverse = TRUE))
  #ggsave(glue("metacluster_{compare_group}.pdf"), p1, width = 6, height = 6)
  plist[[compare_group]] <- p1
}
pc <- (plist[[1]]|plist[[2]]|plist[[3]])/(plist[[4]]|plist[[5]]|plist[[6]]) +
  plot_layout(guides = 'collect', widths = c(2, 2.5, 2.5, 2.5))
ggsave(glue::glue("{res_dir}/sup_figure7a_wilct.pdf"), pc, width = 10.5, height = 5)
pc

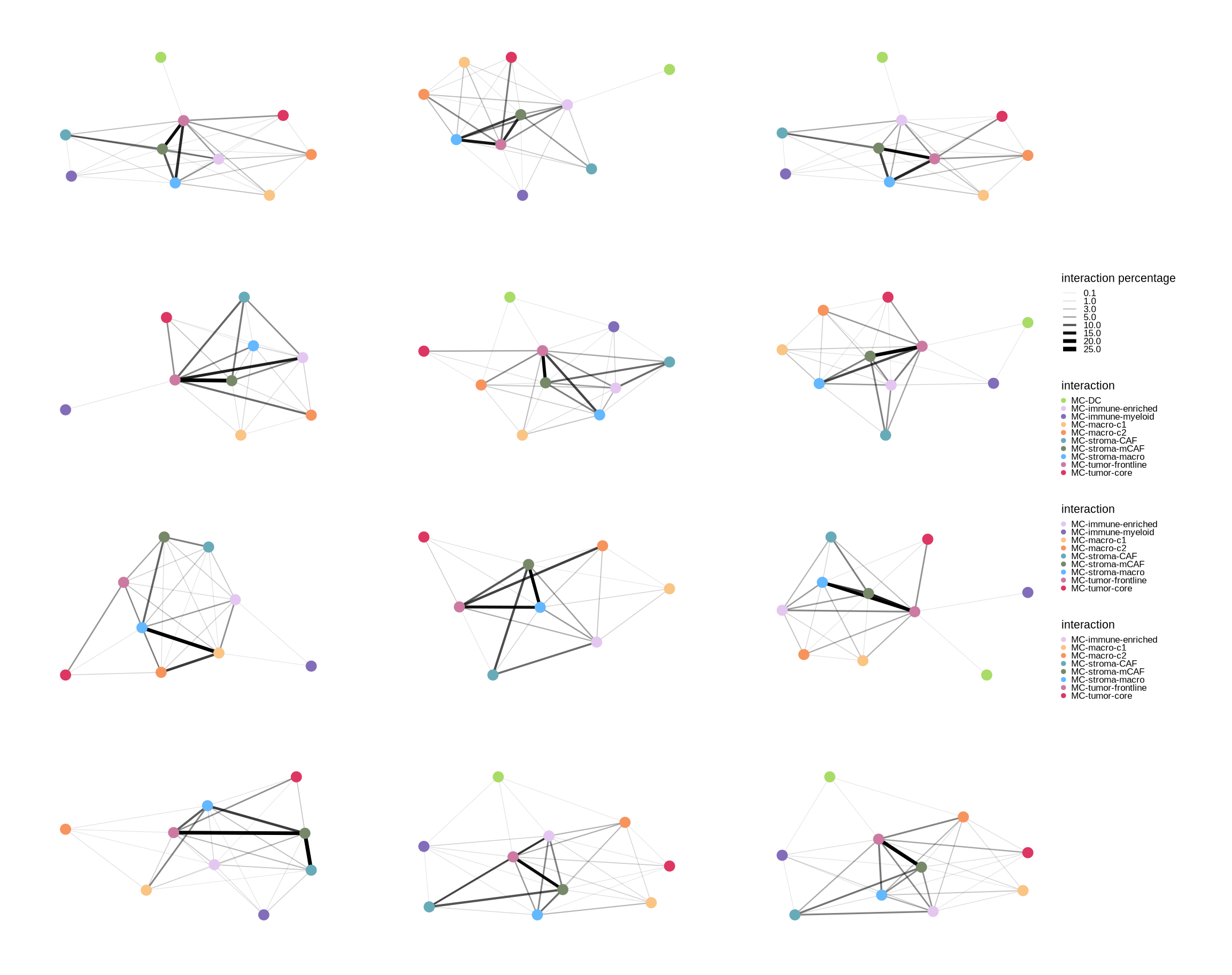

sup_figure7b

# clinical metadata
#chemo_outcome_before
dt_cob <- metadata[["chemo_outcome_before"]][c("patient_id", "size_alteration")]
dt_cob <- coldat %>% dplyr::filter(patient_id %in% dt_cob$patient_id) %>%
  dplyr::select(sample_id, stype2, patient_id, sample_tiff_id) %>% unique() %>%
  left_join(dt_cob, by = "patient_id") %>%
  dplyr::filter(stype2 %in% c("before_chemo", "puncture_pdac"))

#chemo_outcome_after
dt_coa <- metadata[["chemo_outcome_after"]][c("patient_id", "size_alteration")]
dt_coa <- coldat %>% dplyr::filter(patient_id %in% dt_coa$patient_id) %>%
  dplyr::select(sample_id, stype2, patient_id, sample_tiff_id) %>% unique() %>%
  left_join(dt_coa, by = "patient_id") %>%
  dplyr::filter(stype2 %in% c("after_chemo", "tumor"))

dt_list <- list(dt_cob, dt_coa)
names(dt_list) <- c("chemo_outcome_before", "chemo_outcome_after")

for (i in 1:length(dt_list)) {
  dt_list[[i]] <- left_join(dt_list[[i]], do.call("rbind", ci),
                            by = "sample_tiff_id") %>% dplyr::select(-c(from, to))
  dt_list[[i]] <- dt_list[[i]] %>% left_join(meta_clu[, c("old_cluster_name", "meta_short_new")],
                                             by = c("from_cluster" = "old_cluster_name")) %>%
    dplyr::rename("from_meta_old" = "from_meta", "from_meta" = "meta_short_new") %>%
    left_join(meta_clu[, c("old_cluster_name", "meta_short_new")],
              by = c("to_cluster" = "old_cluster_name")) %>%
    dplyr::rename("to_meta_old" = "to_meta", "to_meta" = "meta_short_new")

  dt_list[[i]][["size_alteration"]] <- factor(dt_list[[i]][["size_alteration"]],
                                              levels = factor_list[[names(dt_list)[i]]])
}

group_list <- list(c("chemo_outcome_before", "size_alteration"),
                   c("chemo_outcome_after", "size_alteration"))

p1 <- purrr::map2(dt_list, group_list, ~interaction_plot(x = .x, conditionCol = .y[2],
                                                         group = .y[1], colors = meta_cols))
names(p1) <- c("chemo_outcome_before", "chemo_outcome_after")


#sub keycols
keycols_sub <- keycols_list[c("nerve_invasion", "vascular_invasion", "lymph_metastasis", "pfs_analysis")]

dt_list <- list()
for (i in 1:length(keycols_sub)) {
  dt_list[[i]] <- metadata[[names(keycols_sub[i])]][c("patient_id", keycols_sub[[i]])]
  dt_list[[i]] <- coldat %>% dplyr::filter(patient_id %in% dt_list[[i]]$patient_id) %>%
    dplyr::select(sample_id, stype2, patient_id, sample_tiff_id) %>% unique() %>%
    left_join(dt_list[[i]], by = "patient_id") %>% dplyr::filter(stype2 %in% c("after_chemo", "tumor"))
}

for (i in 1:length(dt_list)) {
  dt_list[[i]] <- left_join(dt_list[[i]], do.call("rbind", ci), by = "sample_tiff_id") %>%
    dplyr::select(-c(from, to))
  dt_list[[i]] <- dt_list[[i]] %>% left_join(meta_clu[, c("old_cluster_name", "meta_short_new")],
                                             by = c("from_cluster" = "old_cluster_name")) %>%
    dplyr::rename("from_meta_old" = "from_meta", "from_meta" = "meta_short_new") %>%
    left_join(meta_clu[, c("old_cluster_name", "meta_short_new")],
              by = c("to_cluster" = "old_cluster_name")) %>%
    dplyr::rename("to_meta_old" = "to_meta", "to_meta" = "meta_short_new")

  dt_list[[i]][[keycols_sub[[i]]]] <- factor(dt_list[[i]][[keycols_sub[[i]]]],
                                             levels = factor_list[[names(keycols_sub)[i]]])
}

p_list <- list()
for (i in 1:length(dt_list)) {
  for (j in 1:length(keycols_sub[[i]])) {
    group1 <- str_c(names(keycols_sub)[i],keycols_sub[[i]][j], sep= "_")
    p_list[[group1]] <- interaction_plot(dt_list[[i]] %>%
                                           dplyr::select(sample_id, keycols_sub[[i]][j], sample_tiff_id,
                                                         from_cluster, to_cluster, from_meta, to_meta) %>% na.omit(),
                                         conditionCol = keycols_sub[[i]][j], group = group1, colors = meta_cols)
  }
}


p_list <- c(p_list, p1)

lo <- "
ABC
DEF
GHI
JKL
"

p2 <- p_list[["nerve_invasion_nerve_invasion"]][[1]] + p_list[["vascular_invasion_vascular_invasion"]][[1]] +
  p_list[["lymph_metastasis_lymph_metastasis_status"]][[1]] + p_list[["nerve_invasion_nerve_invasion"]][[2]] +
  p_list[["vascular_invasion_vascular_invasion"]][[2]] + p_list[["lymph_metastasis_lymph_metastasis_status"]][[2]] +
  p_list[["chemo_outcome_before"]][[1]] + p_list[["chemo_outcome_after"]][[1]] +
  p_list[["pfs_analysis_pfs_group"]][[1]] + p_list[["chemo_outcome_before"]][[2]] +
  p_list[["chemo_outcome_after"]][[2]] + p_list[["pfs_analysis_pfs_group"]][[2]] + plot_layout(design = lo, guides='collect')

ggsave(glue::glue("{res_dir}/sup_figure7b.pdf"), p2, width = 12, height = 9.5)
p2
